Home Products

Fiber Optic Gyro

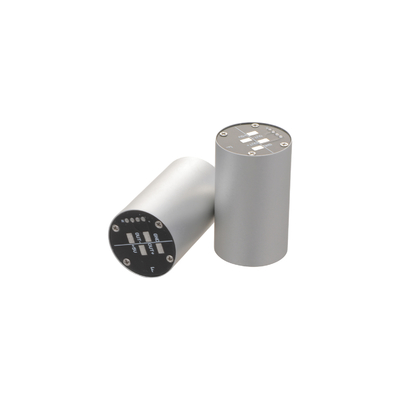

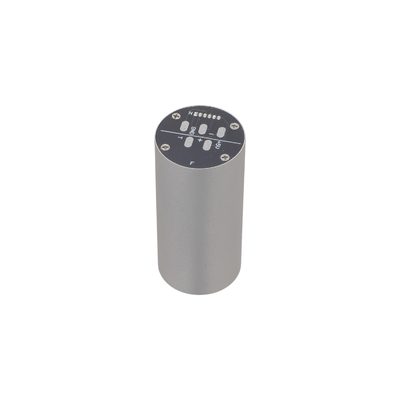

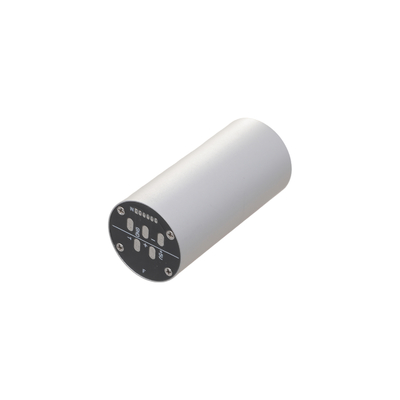

Micro-Nano Integrated Fiber Optic Gyroscope Fizoptika Vg091 for Industrial control

Name: Micro-Nano Integrated Fiber Optic Gyroscope Fizoptika Vg091 for Industrial control
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091A
Price: 1500 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	MFOG-091A
MOQ:	1
Price:	1500$
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measuring Range:

±300°/s

Zero-bias Stability (10s, 1σ, °/h):

2°/h

Angular Random Walk (°/H1/2):

≤0.04°/h

Zero-Bias Repeatability:

≤2°/h

Scale Factor Stability (RMS,%):

7±0.7mv/o/s

Power Supply (V):

5+0.15V

Dimension:

24X51.6mm

Weight:

≤30g

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

Fizoptika Vg091 Fiber Optic Gyroscope

Industrial Control Fiber Optic Gyroscope

Micro-Nano Integrated Fiber Optic Gyroscope

Product Description

Micro-Nano Integrated Fiber Optic Gyroscope Fizoptika Vg091 for Industrial Control

Key Specifications

Attribute	Value
Measuring Range	±300°/s
Zero-bias stability (10s, 1σ, °/h)	2°/h
Angular random walk (°/H1/2)	≤0.04°/h
Zero-Bias Repeatability	≤2°/h
Scale factor stability (RMS,%)	7±0.7mv/o/s
Power supply (V)	5+0.15V
Dimension	24X51.6mm
Weight	≤30g

Product Overview

The MFOG-091A micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Utilizing the Sagnac effect and incorporating multiple micro-nano fiber devices, it precisely detects and processes phase differences between counter-propagating light beams.

This compact gyroscope features a simple design with no moving or wearing parts, offering rapid startup, small footprint, and lightweight construction. It is ideally suited for carrier attitude control and measurement applications.

Component Structure

Optical path assembly
Detection and control signal circuit board
Fiber ring skeleton, housing, and structural components

Technical Parameters

Parameter	Specification
Range (°/s)	±300
Scale factor	7±0.7mv/o/s
Scale factor nonlinearity (ppm)	≤1000
Zero-bias stability (10s, 1σ, °/H)	≤2
Zero-bias repeatability (1σ, °/H)	≤2
Angular random walk (°/H 1/2)	≤0.04
Zero bias (°/s)	≤0.05
Bandwidth 3dB Band Width (Hz)	≥450
Power supply (V)	5 ± 0.15
Power Consumption (W)	≤0.7
Dimension (mm)	φ24X51.6

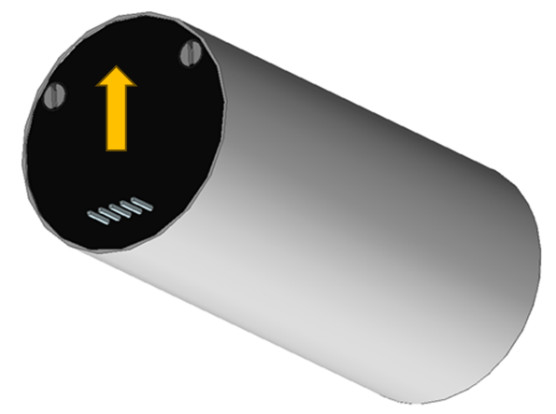

Product Diagram
