Home Products

Fiber Optic Gyro

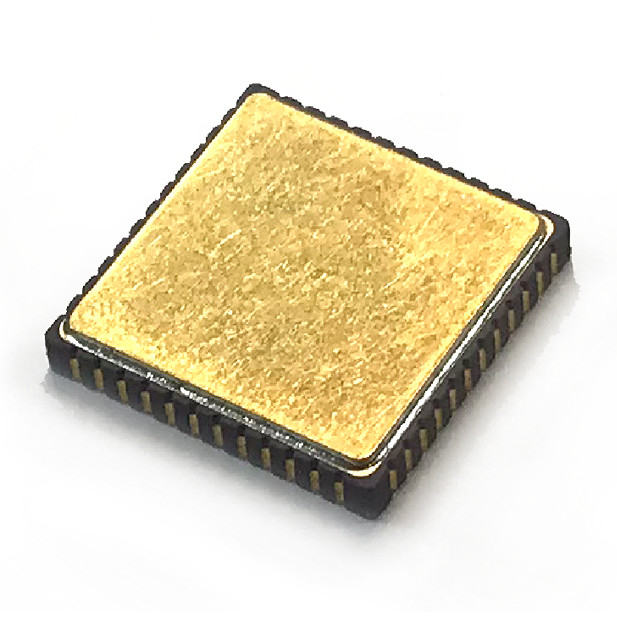

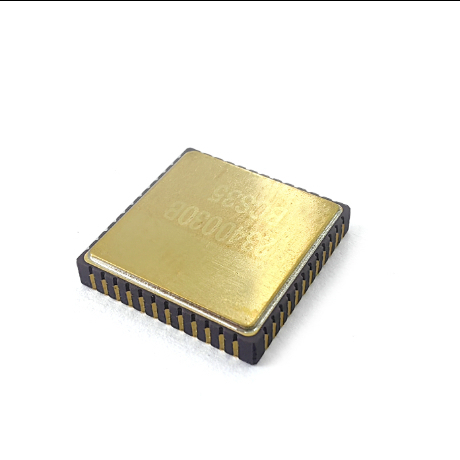

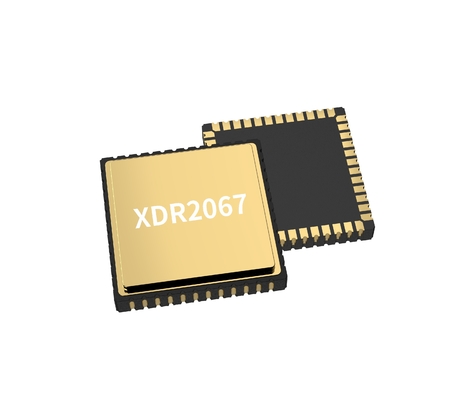

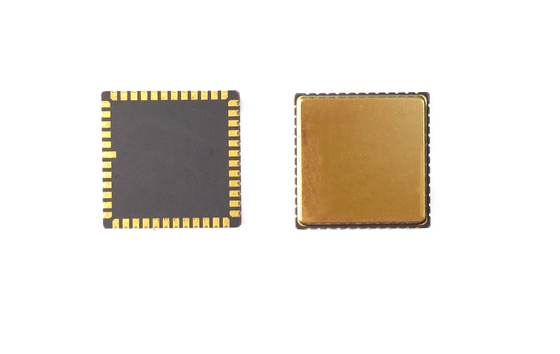

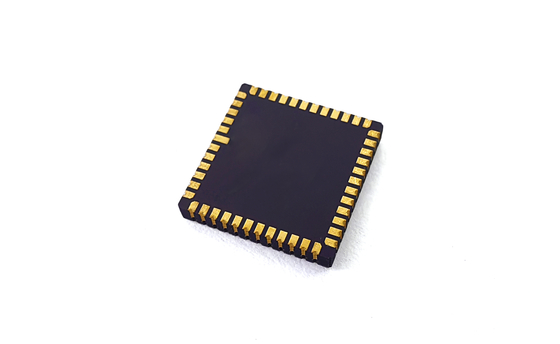

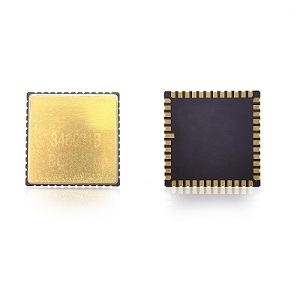

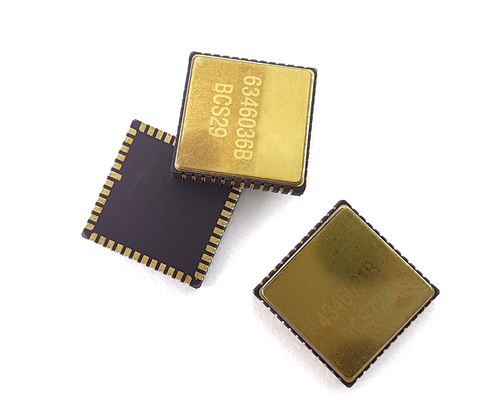

100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi

Name: 100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MGC500-P2
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MGC500-P2
MOQ:	1
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Range:

500dps

Bias @ 25℃:

45dph

Bias Stability (10 S Smoothing):

2.0dph

Angle Random Walk:

0.08°/√h

Noise @ 10Hz:

0.0012mdps/√H

Bias Repeatability (Weekly Repeatability:

2dph

Scale Factor Repeatability (Weekly Repeatability):

30ppm

Bandwidth:

100HZ

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

PCB High Precise Gyro

High Precise Gyro 24 Bits

Product Description

100Hz PCB High Precision Gyro with 24-Bit Output Accuracy Digital SPI

Key Specifications

Range	500dps
Bias @ 25℃	45dph
Bias Stability (10 s smoothing)	2.0dph
Angle Random Walk	0.08°/√h
Noise @ 10Hz	0.0012mdps/√H
Bias Repeatability (Weekly)	2dph
Scale Factor Repeatability (Weekly)	30ppm
Bandwidth	100Hz

Detailed Performance Comparison

Parameter	MGC150 - P05	MGC500 - P1	MGC500 - P2	MGC500 - P3	Unit
Range	±150	±500	±500	±500	dps
Bias @ 25°C	15	45	45	45	dph
Noise @ 10Hz	0.001	0.0012	0.0012	0.0012	mdps/√Hz
Bias Stability (10 s smoothing)	0.5	1.0	2.0	3.0	dph
Angle Random Walk	0.06	0.08	0.08	0.08	°/√h
Bias Repeatability (Weekly)	2	2	2	2	dph
Scale Factor	38550	11185	11185	11185	LSB/dps
Scale Factor Repeatability (Weekly)	30	30	30	30	ppm
Non-linearity @ Full Scale (FS)	100	100	100	100	ppm
Non-linearity @ 200 dps	50	50	50	50	ppm
Bandwidth	30	≥100	≥100	≥100	Hz
G-Sensitivity	2	3	3	3	dph/g
Vibration Rectification Coefficient @ 6.06 grms	0.4	0.3	0.3	0.3	dph/g²
Vibration Reliability (Power-on)	4000g, 0.5ms	4000g, 0.5ms	4000g, 0.5ms	4000g, 0.5ms	-
