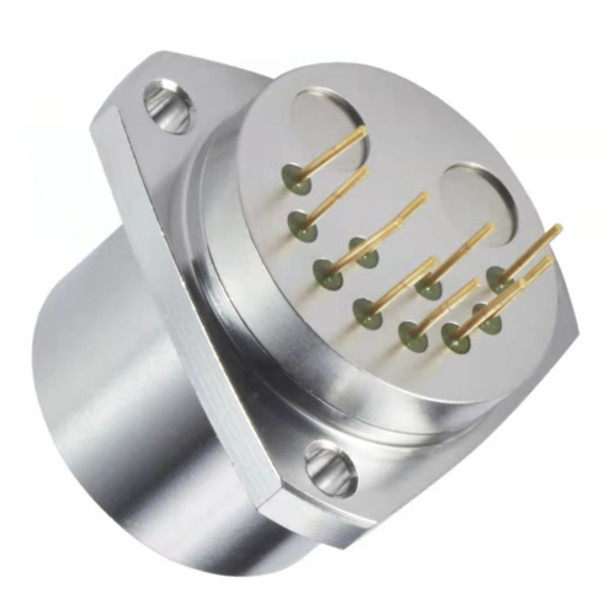

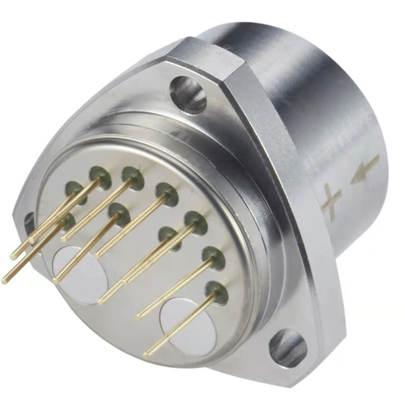

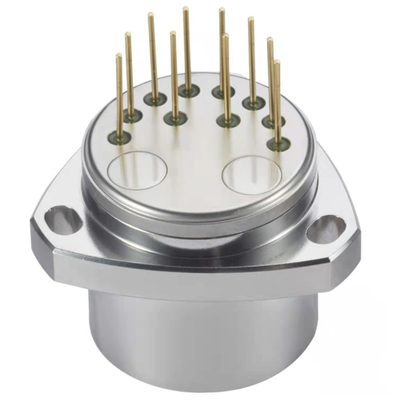

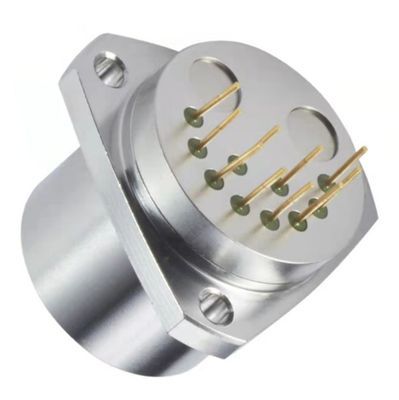

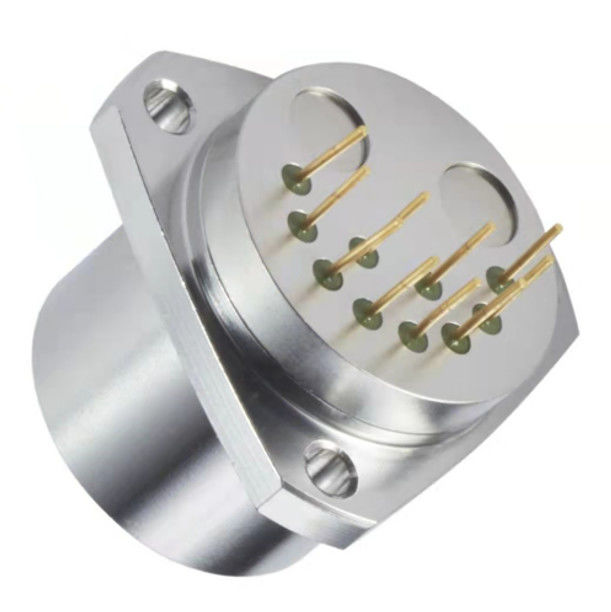

high stability quartz flexibility accelerometer, quartz accelerometer scale factor 50g range inertial acceleration meter
Product Introduction
Quartz flexible accelerometer is a high-precision military inertial navigation grade accelerometer product with excellent long-term stability, repeatability, start-up performance, environmental adaptability and high reliability. It can be used for both static testing and dynamic testing. test, is also a standard vibration sensor.
The output current of the product has a linear relationship with the force or acceleration received, and the user can select an appropriate sampling resistor through calculation to achieve high-precision output. A temperature sensor can be built-in according to user needs, which can be used to compensate the offset value and scale factor to reduce the influence of ambient temperature.
Performance Characteristics
| No. | Parameters | QTA1-A | QTA1-B | QTA1-C |
| 1 | Range | ±50g | ±50g | ±50g |
| 2 | Threshold | 5μg | 5μg | 5μg |
| 3 | Bias K0/K1 | ≤±3mg1 | ≤±3mg | ≤±5 mg |
| 4 | Scale factor K1 | 1.05~1.30 mA/g | 1.05~1.30 mA/g | 1.05~1.30 mA/g |
| 5 | Second order nonlinearity coefficient K2 | ≤±10μg /g2 | ≤±15μg /g2 | ≤±20μg /g2 |
| 6 | 0g 4 hours short-term stability | ≤10 μg | ≤15 μg | ≤20 μg |
| 7 | 1g 4 hours short-term stability | ≤10 ppm | ≤15 ppm | ≤20 ppm |
| 8 | Bias comprehensive repeatability σK0 (1σ,1 month) | ≤10 μg | ≤20 μg | ≤30 μg |
| 9 | Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) | ≤15ppm | ≤30 ppm | ≤50 ppm |
| 10 | Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) | ≤±10 μg /g2 | ≤±20 μg /g2 | ≤±30 μg /g2 |
| 11 | Bias thermal coefficient (full temp. mean) | ≤±10 μg /℃ | ≤±30 μg /℃ | ≤±50 μg /℃ |
| 12 | Scale factor thermal coefficient (full temp. mean) | ≤±10 ppm /℃ | ≤±30 ppm /℃ | ≤±50 ppm /℃ |
| 13 | Noise (sampling resistance 840Ω) | ≤5mv | ≤8.4mv | ≤8.4mv |
| 14 | Natural frequency | 400~800 Hz | 400~800 Hz | 400~800 Hz |
| 15 | Bandwidth | 800~2500 Hz | 800~2500 Hz | 800~2500 Hz |
| 16 | Random vibration | 6g(20-2000Hz) | 6g(20-2000Hz) | 6g(20-2000Hz) |
| 17 | Impact | 100g,5ms,1/2sin | 100g,5ms,1/2sin | 100g,5ms,1/2sin |
| 18 | Working temp. | -55~+85℃ | -55~+85℃ | -55~+85℃ |
| 19 | Store temp. | -60~+120℃ | -60~+120℃ | -60~+120℃ |
| 20 | Power supply | ±12~±15V | ±12~±15V | ±12~±15V |
| 21 | Consume current | ≤±20mA | ≤±20mA | ≤±20mA |
| 22 | Thermal sensor | Customizable | Customizable | Customizable |
| 23 | Size | Ф25.4X30mm | Ф25.4X30mm | Ф25.4X30mm |
| 24 | Weight | ≤80g | ≤80g | ≤80g |
Dimension
Applications
Drilling
Inclination Measurement
Aeronautics
Astronautics
Instruments
Inertial Equipment
Features
High resolution
High stability
High accuracy
Low power
Excellent overload capacity
Small volume
Low cost
