| Brand Name: | Firepower |
| Model Number: | CHA-9E |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100/MONTH |

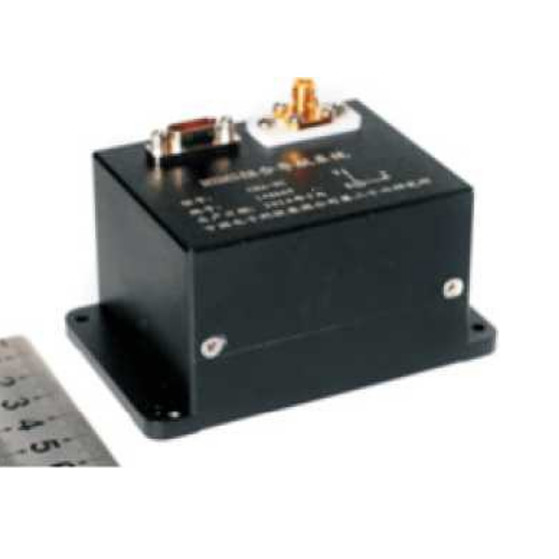

MEMS INS with GPS barometer, small size INS, low cost INS
Product features
Small size
light weight
low cost
strong environmental adaptability
anti-disturbance
suitable for harsh use environment
High accuracy and large measurement range
Field of application
Unmanned aerial vehicles, guided bombs, missiles, rockets, platform stabilization.
This product adopts highly integrated MEMS gyroscope and accelerometer IMUs GPS-OEM board, barometric altimeter, magnetometer and other multi-purpose sensors, uses Kalman filtering technology to fuse SINS and GPS information, and outputs stable and reliable navigation parameters such as heading, attitude, speed and position. Gyroscopes mainly include MEMS gyroscopes and fiber optic gyroscopes.
| Main technical indicators | ||||
| Accuracy of course angle | 1.0° 〜2.0.(1 σ) | |||
| Pitch accuracy | 0.5° -1.0° (1 σ) | |||
| Roll accuracy | 0.5° -1.0° (1σ) | |||
| Speed accuracy | 0.3m/s | |||
| Positioning accuracy | 10m (CEP) | |||
| 500m (5min after no Beidou signal) | ||||
| Preparation time | <2min | |||
| Heading measurement range | 0-360° | |||
| Elevation measurement range | ±90° | |||
| Rolling measurement range | ±180° | |||
| Range of angular velocity measurement | ±100° /s~ ±400° Zs | |||
| Acceleration measurement range | ± 5g~ ±30g | |||
| Physical dimensions and electrical characteristics | ||||
| Overall dimensions | 96mm x 60mm x48mm | |||
| Weight | <300g | |||
| Power supply | DC24±3V | |||
| Power consumption | W5W | |||
