| Brand Name: | Firepower |
| Model Number: | CHA-9E |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 1000/month |

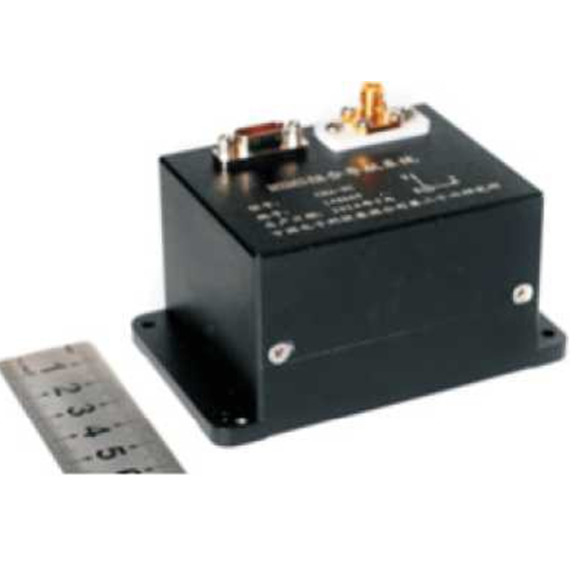

anti-disturbance gyro accelerometer, high accuracy gyro accelerometer sensor. MEMS accelerometer gyro
Product features
■ Small size, light weight, low cost, strong environmental adaptability, anti-disturbance, suitable for harsh use environment
■ High accuracy and large measurement range
Product introduction
This product adopts highly integrated MEMS gyroscope and accelerometer IMUs GPS-OEM board, barometric altimeter, magnetometer and other multi-purpose sensors, uses Kalman filtering technology to fuse SINS and GPS information, and outputs stable and reliable navigation parameters such as heading, attitude, speed and position. Gyroscopes mainly include MEMS gyroscopes and fiber optic gyroscopes.
Field of application
Unmanned aerial vehicles, guided bombs, missiles, rockets, platform stabilization.
| Main technical indicators | ||||
| Accuracy of course angle | 1.0° 〜2.0.(1 σ) | |||
| Pitch accuracy | 0.5° -1.0° (1 σ) | |||
| Roll accuracy | 0.5° -1.0° (1σ) | |||
| Speed accuracy | 0.3m/s | |||
| Positioning accuracy | 10m (CEP) | |||
| 500m (5min after no Beidou signal) | ||||
| Preparation time | <2min | |||
| Heading measurement range | 0-360° | |||
| Elevation measurement range | ±90° | |||
| Rolling measurement range | ±180° | |||
| Range of angular velocity measurement | ±100° /s~ ±400° Zs | |||
| Acceleration measurement range | ± 5g~ ±30g | |||
| Physical dimensions and electrical characteristics | ||||
| Overall dimensions | 96mm x 60mm x48mm | |||
| Weight | <300g | |||
| Power supply | DC24±3V | |||
| Power consumption | W5W | |||
