| Product Name | Inertial Gyro Accelerometer |
|---|---|
| Gyro Range | ±500º/s |
| Gyro Bias Instability | <2º/h |
| Bias In Full Temperature Range | <5º/h |
| Scale Factor Is Nonlinear | <500ppm |
| Product Name | Inertial Measurement Unit |
|---|---|
| Gyro Measuring Range | ±500º/s |
| Gyro Zero Bias Stability | 0.3 Deg/h |
| Angular Random Walk | 0.06deg /√h |
| Accelerometer Range | 16g |
| Measuring Range. | ±100〜±500deg/s |
|---|---|
| Startup Time | <10s |
| Zero Bias Temperature Sensitivity | <0.8°/h/°C |
| Resolution | <0.008°/S |
| Threshold | <0.008°/S |
| Product Name | MEMS Inertial Measurement Unit |
|---|---|
| Gyro Range | ±400º/s |
| Zero Bias Stability | 10deg/h |
| Bias Error | 1mg |
| Random Walk | 0.2°/√h |
| Product | FOG INS |
|---|---|
| Gyro Range | 300°/s |
| Gyro Resolution | ≤0.5°/h |
| Gyro Bias | ±1.0°/h |
| Gyro Bias Stability | ≤0.3°/h（1σ） |
| Product Name | Inertial Sensor With GPS |
|---|---|
| Heading Accuracy | 1°(rms) |
| Attitude Accuracy | 0.3°(rms) |
| Gyro Range | ±300°/s |
| Gyro Zero Bias Stability | 10°/h |
| Product Name | MEMS Inertial Measurement Unit |
|---|---|
| Dynamic Range | ±1000º/s |
| Zero Bias Stability | 5deg/h |
| Zero Bias Stability | 30deg/h |
| Output Noise | 0.135º/s |
| Product Name | Pure IMU |
|---|---|
| Gyro Measuring Range | ±500°/s |
| Zero-bias Stability | ≤ 0.1 °/H |
| Bandwidth | 80Hz |
| Accelerometer Range | ±5g |

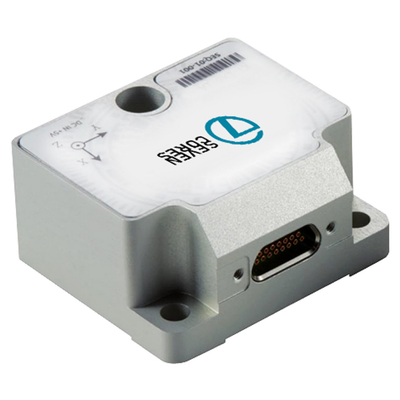

| Product Name | STIM300 Analog Product |
|---|---|
| Gyro Measuring Range | ±500°/s |
| Gyro Resolution | 24 Bits |
| Gyro Scale Factor | <300ppm |
| Gyro Bias Stability | <5°/h |
| Gyro Range | ±500°/s |
|---|---|
| Gyro Zero Bias Stability | 0.3°/h |
| Acc Range | ±20g |
| Acc Zero Bias Stability | 2ug |
| Random Walk | 0.15°/√h |
