| Brand Name: | Firepower |
| Model Number: | 300-C |
| MOQ: | 1 |
| Payment Terms: | T/T |

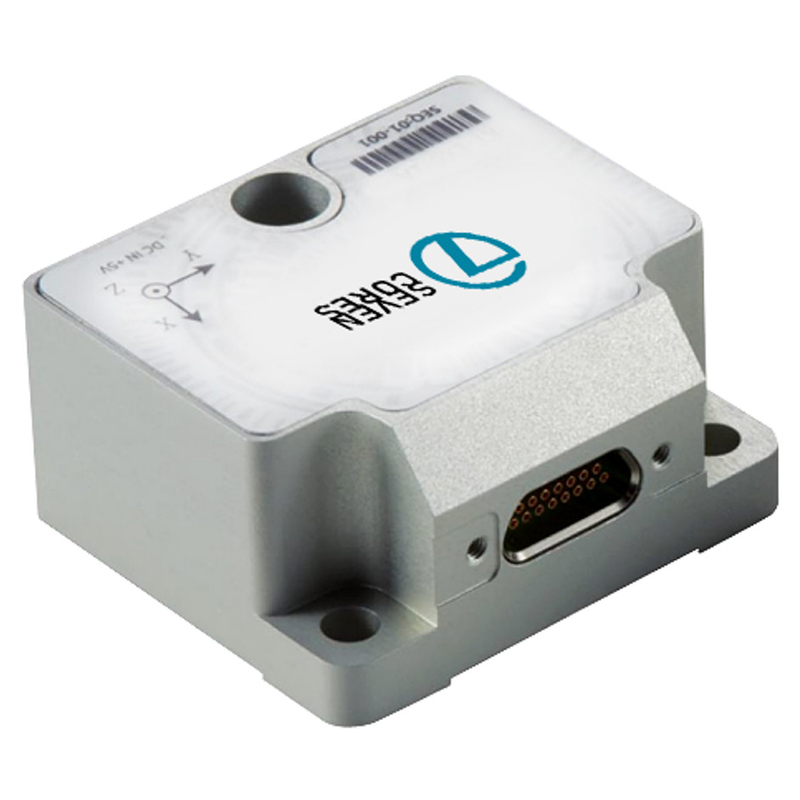

low cost MEMS IMU 3 axis accelerometer 3 axis gyro integrated sensor
300-C is a domestic MEMS IMU used to replace STIM300. After rigorous testing, the performance is completely replaceable,The version is optional, the size and appearance are exactly the same, and the communication protocol is the same.The version is optional, the size and appearance are exactly the same, and the communication protocol is the same. It is more convenient for users to change, providing users with professional product customization services.
| Parameters | Index | X | Y | Z | unit | |
| Gyro | Measuring range | ±400 | ±500 | ±500 | ±500 | °/s |
| Resolution | 24 | 24 | 24 | 24 | bits | |
| Linearity of scale factor | <300 | 243 | 186 | 150 | PPM | |
| Scale factor repeatability | <100 | 42 | 27 | 29 | PPM | |
| bandwidth | 250 | 250 | 250 | 250 | Hz | |
| Bias stability(1σ) | <5 | 2.7 | 2.5 | 3.4 | °/h | |
| Bias repeatability(1σ) | <5 | 0.94 | 1.1 | 0.88 | °/h | |
| Bias in full temperature | <30 | 16.1 | 6.5 | 11.9 | °/h | |
| Noise(RMS) | <0.15 | 0.084 | 0.073 | 0.083 | °/s | |
| Resolution | <1 | 0.3 | 0.32 | 0.25 | °/h | |
| Cross coupling | <0.1% | 0.04% | ||||
