| Brand Name: | Firepower |
| Model Number: | TH1-20 |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10/ 3months |
1 axis rate position turntable with thermal chamber

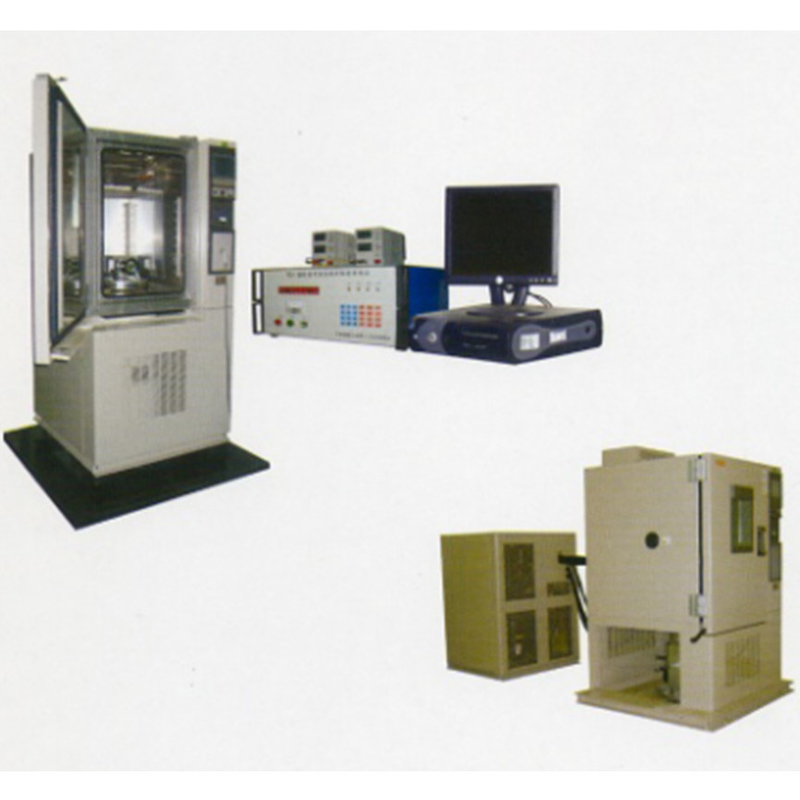

Single axis rate position turntable with temperature chamber
The turntable owns precision rate and position functions. It could proceed full temperature test towards inertial device and system with equipped temperature chamber.
Main technical parameters
| Load capacity | 20kg |
| Table facet size | Ø400mm |
| Table facet flatness | 0.01mm |
|
Axes perperdicularity (table facet and main axis) |
±3’’ |
| Inclination rotary accuracy | ±3’’ |
| Rotation angle range | Continuous infinite |
| Conductive loop | 50 loops |
| Angular position measure resolution | 0.0001° |
| Angular position measure accuracy | ±3’’ |
| Angular position measure repeatability | ±2’’ |
| Measures angle display mode | 0.0001°~359,9999° |
| rate range | ±0.001°/s~±1000°/s |
| rate accuracy and degree of balance | 5x10-3(360° interval) |
| 1x10-3(10° interval) | |
|
5x10-2(1° interval)
|
| Chamber | |
| Refrigerating method | Electrical refrigeration |
| Temperature range | -50℃~+150℃ |
| Temperature uniformity area | Ø400mm x 400mm |
| Temperature accuracy and uniformity | ±5℃(empty chamber) |
| Temperature up and down rate |
Adjustable, max temperature change rate≮2℃/min |
| Slip rings |
50 rings |
