High performance fiber optical gyro low bias optical gyro price

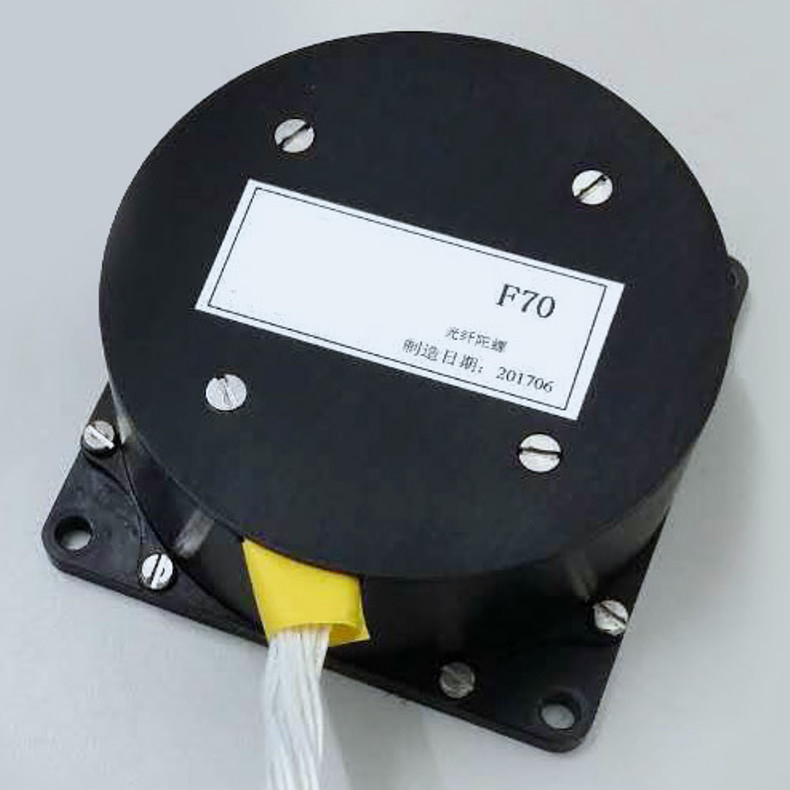

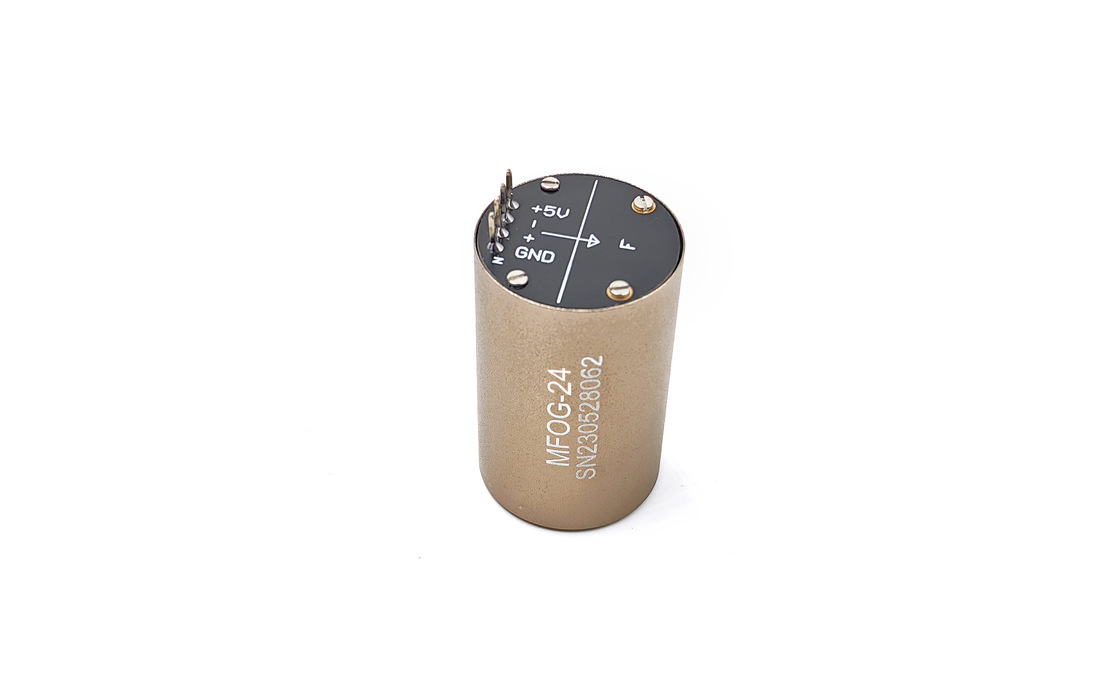

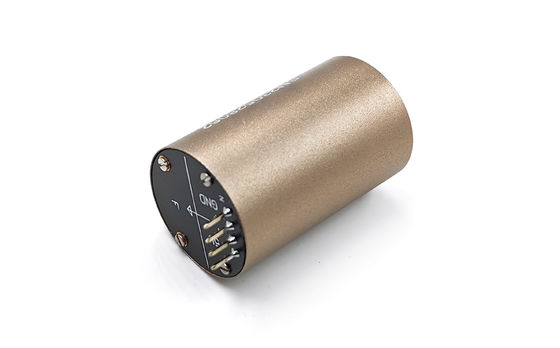

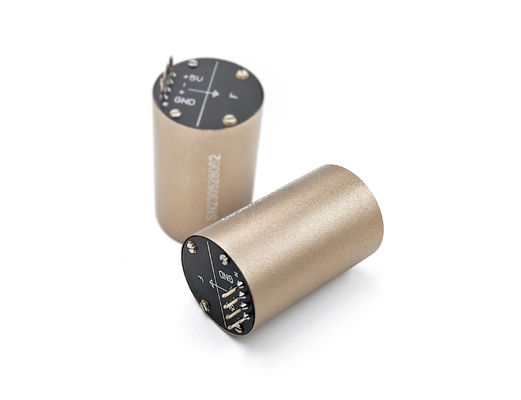

The F70 is the interferometric digital close-loop single-axis fiber optic gyro. It is the perfect substitution for traditional mechanical gyro, featuring of high bandwidth, short activation time, shock resistance, vibration resistance and affordable cost.
The F70 FOG adopt the embedded digital signal processor. The integrated adaptive filter reduces the bias stability and angle random walk by 50%-70%,technology which not only reduces the impact of the temperature but also significantly improves the bias stability, angle random walk, scale factor linearity and robustness. The exceptional bias stability, angle random walk and resistance to shock make it ideal for various military and industrial applications.
F70is a angular speed sensor integrated with light, mechanism and eletricity. it is based on Sagnac effect and close loop control test technology. it tests, processes and feedbacks by the phase difference produced by two oppsite transmission light, realising the whole close loop process.
the item is mainly composed by optical path units, circuit units and structural unit. it has simpler structure, no moving parts, no wearing parts, quicker start, smaller volume and ligher comparing with electromechanical gyro. It could be widely used in missile guidance and control, positioning and aiming system of tank and fighting vehicle, ship's photoelectrical tracking system
Features
● All-fiber design -long lifespan, small package size, high stability and more resistance to interference.
● Integrated fiber polarizer -minimum insertion loss and high extinction ratio, offering more resistance to temperature and mechanical shock, as well as intense vibration.
● Reliable compact package -operationally robust for all kinds of environments, ideal for a wide of applications in both civilian and military areas.
● QuichLaunch technology -minium activation time with no external calibration required.
● Optimal wavelength -improves the sensibility by 50% with the same structure, size and cost.
● Noise isolation and compression -significantly reduces the angle random walk.
● SelfTrack technology -improves the gyro dynamic range
Applications
●UAV/AUV/Helicopter ●Tactical nuclear weapons ●Aeronautics and astronautics
●Integrated navigation system ●inertial platform stabilizing ●Vehicle navigatio
| No. | Parameter | F70-400 | Unit | Remarks | ||||||
| 1 | Maximum angular rate | ±500 | °/s | |||||||
| 2 | Scale factor |
45000× (1±10%) |
SP/°/s | |||||||
| 3 | Scale factor nonlinearity in room temperature | ≤50 | ppm | @25℃ |
||||||
| 4 | Scale factor repeatability in room temperature | ≤50 | ppm | @25℃ | ||||||
| 5 |
Scale factor repeatability in full temperature
|
≤150 | ppm | -40℃~+70℃ | ||||||
| 6 | Bias stability in room temperature | ≤0.15 |
10s 1σ,°/h |
@25℃ | ||||||
| 7 | Bias repeatability in room temperature | ≤0.15 | 1σ,°/h | Bias | ||||||
| 8 | Bias repeatability in tull temperature | ≤0.35 | 1σ,°/h | -40℃~+70℃ | ||||||
| 9 | Activation time | 0 | min | |||||||
| 10 | Bias value during vibration/before vibration/after vibration | ≤0.5 | °/h | |||||||
| 11 | Bias value before/after vibration) | ≤0.5 | °/h | |||||||
| 12 | Magnetic sensitivity | ≤0.3 | °/h/Gs | Optional | ||||||
| 13 | Vibration |
20Hz～2000Hz
|
Hz/10min | |||||||
| X | Y | Z | ||||||||
|
Vibration spectrum |
||||||||||
| 14 | Impact | 15g(3times) | Half sine wave/11ms | |||||||
| ±X | ±Y | ±Z | ||||||||
Environment requirement

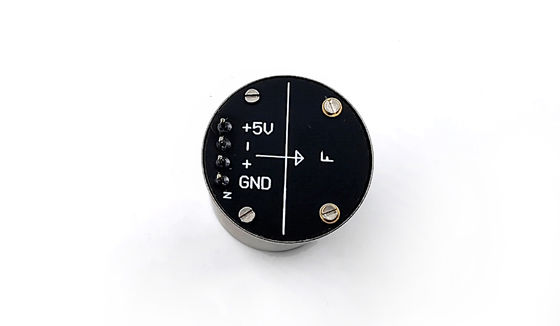

| Power supply | +5V | -5V |
| The fluctuation of voltage | 4.75V~5.25V | -4.75V~-5.25V |
| Rated ripple voltage | 20mV | 20mV |
| Power consumption | 1.5A | 0.6A |
