| Function | Vibration Test |
|---|---|
| Bias K0/K1 | ≤±3mg |
| Threshold | 5μg |
| Scale Factor K1 | 1.05~1.30 MA/g |
| Second Order Nonlinearity Coefficient K2 | ≤±10μg /g2 |
| Bias K0/k1 | ≤±2mg |
|---|---|
| Repeatability Of Scale Factor Sigma Kl/kl( 1σ，one Month) | ≤15ppm |
| 0g 4 Hours Short Time Stability | ≤10μg |
| Bandwidth | 800~2500Hz |
| Threshold /Resolution | 1μg |
| Weight | ≤80g |
|---|---|
| Bias | ≤±3 Mg |
| Scale Factor | 1.25±0.15 MA/g |
| Natural Frequency | ≤800 Hz |
| Bandwidth | 800～2500 |
| Bias K0/k1 | ≤±2mg |
|---|---|
| Repeatability Of Scale Factor Sigma Kl/kl( 1σ，one Month) | ≤15ppm |
| 0g 4 Hours Short Time Stability | ≤10μg |
| Bandwidth | 800~2500Hz |
| Threshold /Resolution | 1μg |

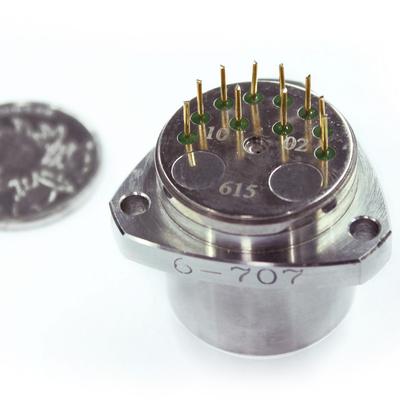

| Production Name | Quartz Vibration Sensor |
|---|---|
| Size | Ф18.2X23mm |
| Weight | <30g |
| Bias | ≤±5 Mg |
| Threshold | 4ug |
| Product Name | MEMS Inertial Navigation Sensor |
|---|---|
| Heading Range | 0-360° |
| Elevation Range | ±90° |
| Rolling Range | ±180° |
| Acceleration Range | ± 5g~ ±30g |

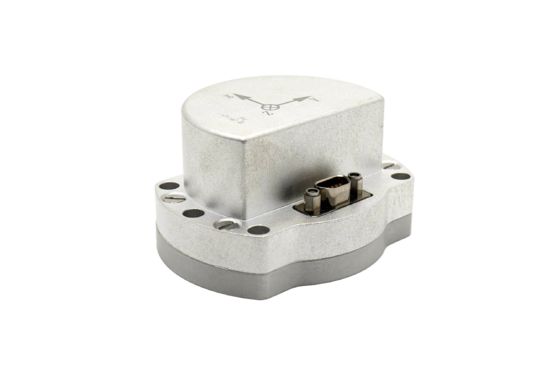

| Product Name | MEMS Inertial Measurement Unit |
|---|---|
| Measuring Range | ±450º/s |
| Zero Bias Stability | 2deg/h |
| Random Walk | 0.1deg /√h |
| Zero-bias Repeatability | 0.1deg/s |
| North Seeking Accuracy | 0.5sec (L) (L Stands For Latitude) |
|---|---|
| Range | 100deg/s |
| Bias | 0.1deg/h |
| Bias Stability | 0.02deg/h |
| Bias Repeatability | 0.1deg/h |
| North Seeking Accuracy | 0.5sec (L) (L Stands For Latitude) |
|---|---|
| Range | 100deg/s |
| Bias | 0.1deg/h |
| Bias Stability | 0.02deg/h |
| Bias Repeatability | 0.1deg/h |
| Power Supply Voltage | 3V~3.6V |
|---|---|
| Gyrp Scale Factor Accuracy | 0.3% |
| MTBF | > 20000h |
| Size | 47×44×14 |
| Power Consumption | 1.5w |
