| Power | ±12~±15V |
|---|---|
| Bias Thermal Coefficient | ≤±10 μg /℃ |
| Scale Factor Kl | 1.05~1.30 MA/g |
| Threshold /Resolution | 1μg |
| 0g 4 Hours Short Time Stability | ≤10 μg |
| Temperature Range(Operating) | -55~+85℃ |
|---|---|
| Repeatability Of Scale Factor Sigma Kl/kl( 1σ，one Month) | ≤15ppm |
| Range | 50g |
| Threshold /Resolution | 1μg |
| Class II Nonlinearity Coefficient K2/k1 | ≤±10μg /g2 |
| Range | 50g |
|---|---|
| Threshould | 5ug |
| Biask0/k1 | ≤±3 Mg |
| Scale Factor K1 | 0.8~1.5 MA/g |
| Bandwidth | 800~2500 Hz |
| Product Name | Inertial Vibration Sensor |
|---|---|
| Range | 70g |
| Threshold | 5ug |
| Bias K0/K1 | ≤±5 Mg |
| Scale Factor | 0.8~1.5 MA/g |

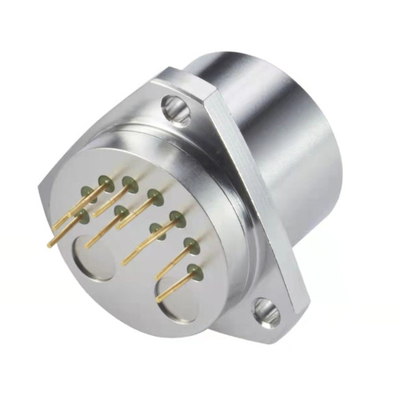

| Scale Factor Kl | 1.05~1.30 MA/g |
|---|---|
| Class II Nonlinearity Coefficient K2/k1 | ≤±10μg /g2 |
| Range | 50g |
| Bias Thermal Coefficient | ≤±10 μg /℃ |
| Weight | ≤80g |
| Load Ability | 10~30kg |
|---|---|
| Table Material | Stainless Steel |
| Product Name | Single Axis Motion Simulator |
| Functions | Position Rate Swing |
| Table Size | φ320mm |
| Product | FOG INS |
|---|---|
| Gyro Range | 300°/s |
| Gyro Resolution | ≤0.5°/h |
| Gyro Bias | ±1.0°/h |
| Gyro Bias Stability | ≤0.3°/h（1σ） |
| Product Name | Motion Simulating Turntable |
|---|---|
| Table Top Material | Stainless Steel |
| Flatness Of Table | 0.02 Mm |
| Rotation Accuracy | ± 2'' |
| Table Facet Flatness | 0.01mm |
| Single Point Positioning Accuracy (RMS) | 1.2m |
|---|---|
| RTK Positioning Accuracy (RMS) | 2cm±1ppm |
| Loss Of Lock Positioning Accuracy (CEP) | 100m/10min, 0.5nm/30min, 1.5nm/h, 2‰D |
| Self-navigation System | 0.05°×sec/Lati |
| Frequency Of Navigation Data | 200 Hz |
| Product Name | Triaxial Turntable |
|---|---|
| Load Max Weight | 50KG |
| Load Max Size | 450×400×350 Mm |
| Structure | UUT |
| Table Top Diameter | 550mm |
