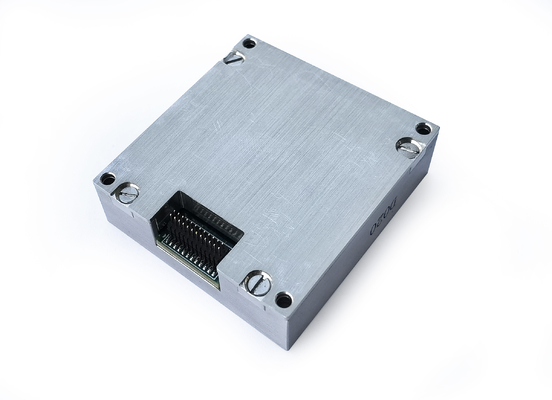

| Product Name | 9 Axis MEMS IMU |
|---|---|
| Gyro Measuring Range | ±400°/s |
| Zero-bias Stability | ≤ 1 °/H |
| Random Walk | ≤ 0.2 °/√ H |
| Resolution | 1 °/H |
| Product Name | IMU Accelerometer Gyro |
|---|---|
| Gryo Scope | 500deg/s |
| Gryo Allan Variance | 2deg/h |
| Accelerometer Allan Variance | 0.1mg |
| Accelerometer Scope | 16g |
| Product Name | IMU Gyro For UAV |
|---|---|
| Gyro Zero Bias Stability | 10 °/h (GJB, 10s), 2.0 °/h (ALLAN) |
| Gyro Range | ±500º/s |
| Accelerometer Zero Bias Atability | 0.5mg |
| Accelerometer Range | ±16g |
| North Seeking Accuracy | 0.5sec (L) (L Stands For Latitude) |
|---|---|
| Range | 100deg/s |
| Bias | 0.1deg/h |
| Bias Stability | 0.02deg/h |
| Bias Repeatability | 0.1deg/h |
| North Seeking Accuracy | 0.5sec (L) (L Stands For Latitude) |
|---|---|
| Range | 100deg/s |
| Bias | 0.1deg/h |
| Bias Stability | 0.02deg/h |
| Bias Repeatability | 0.1deg/h |
| Gyro Range | ±400°/s |
|---|---|
| Gyro Zero Bias Stability | 0.5 °/h |
| Acc Range | 30g |
| Acc Zero Bias Stability | 0.02mg |
| Bandwidth | 200Hz |

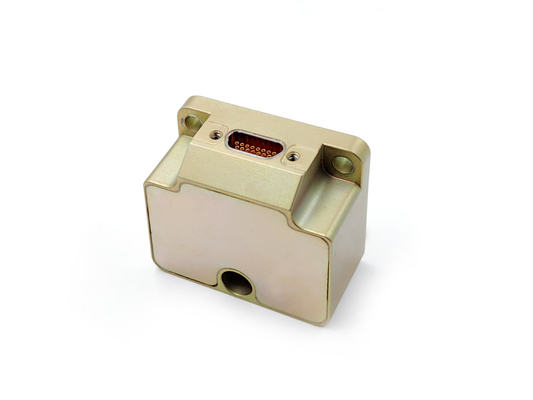

| Product Name | MEMS Inertial Measurement Unit |
|---|---|
| Gyro Range | ±400º/s |
| Zero Bias Stability | 10deg/h |
| Bias Error | 1mg |
| Random Walk | 0.2°/√h |
| Product | FOG INS |
|---|---|
| Gyro Range | 300°/s |
| Gyro Resolution | ≤0.5°/h |
| Gyro Bias | ±1.0°/h |
| Gyro Bias Stability | ≤0.3°/h（1σ） |

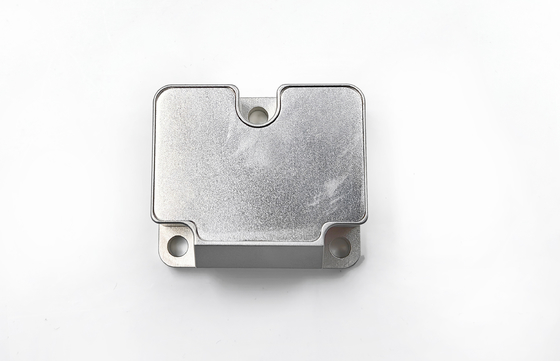

| Product Name | Inertial Measurement Unit |
|---|---|
| Gyro Measuring Range | ±500º/s |
| Gyro Zero Bias Stability | 0.3 Deg/h |
| Angular Random Walk | 0.06deg /√h |
| Accelerometer Range | 16g |
| Gyro Range | ±400°/s |
|---|---|
| Gyro Zero Bias Stability | 0.5°/h |
| Acc Range | ±30g |
| Acc Zero Bias Stability | 0.05mg |
| Bandwidth | 125 Hz |
